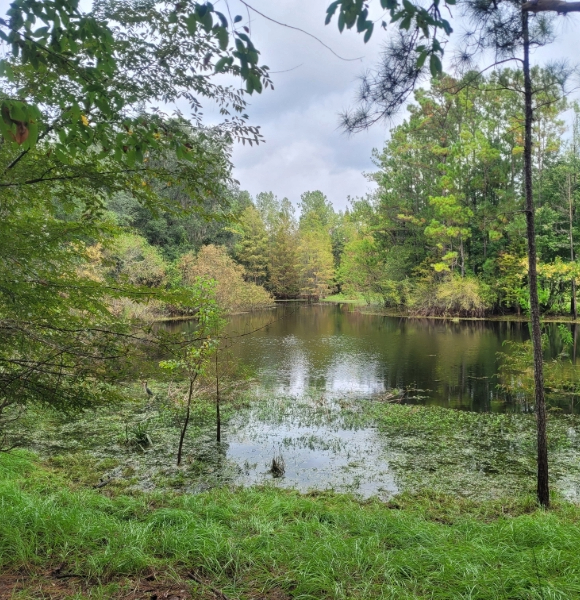

The 3-acre retention pond is the low point of a 39.75 acre watershed. The majority of the basin was constructed in 1988 with additional storage created in 1990. Structures within this watershed contributing significant runoff to the basin include the Center for Performing Arts, Entomology and Nematology buildings, the Park & Ride commuter lot and roadways between and around these buildings. The total storage of the basin to offset the increased runoff generated by these impervious surfaces is 478,000 cubic feet. As originally designed the bottom of the basin is essentially flat, with uniform slopes on the north, south and east sides. To the west of the basin the slope is low and quickly grades into the preexisting depression of the area. Because the basin is almost uniform in elevation the established vegetation was dominated by Cattail.
Ecologically Enhanced Design

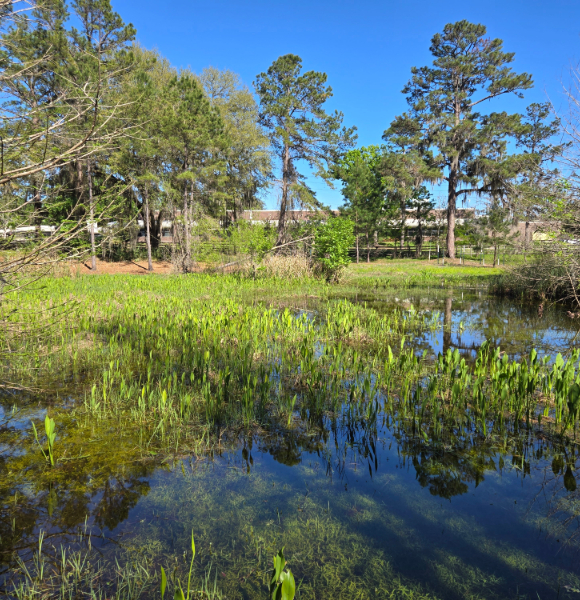

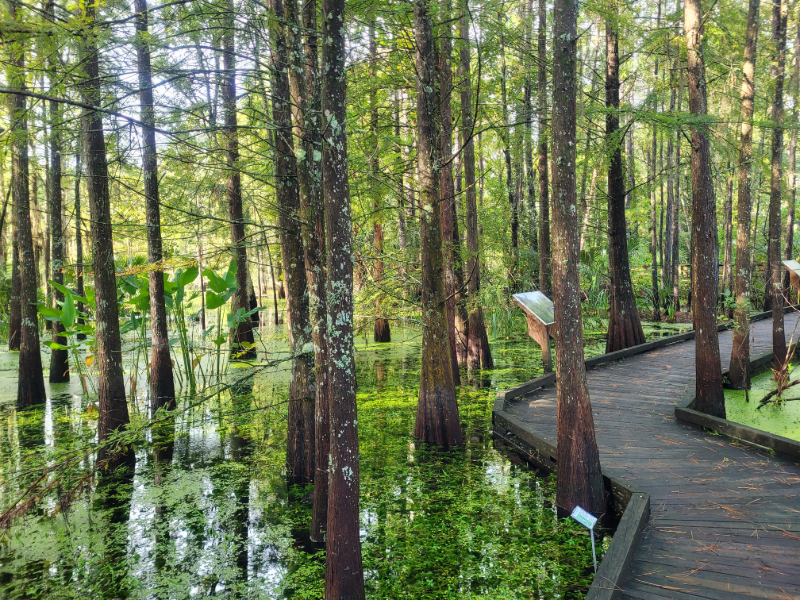

The primary goal of the project is to increase the diversity of flooding depths and frequency of flooding that will occur since this is the primary factor regulating species composition in a wetland. To do this two depressions, one 4-feet, the other 5-feet deep, were dug at the southeastern end of the pond providing a deep, open-water habitat. At the north end a low berm was constructed to temporarily impound 80% of the entering stormwater. This forebay provides the first phase of treatment and was planted with species known to take up heavy metals and remove nutrients. Water from the forebay is then slowly released, first flowing through an area planted to resemble a bottom-land hardwood swamp, and move into a shallow freshwater marsh before entering the deep-water ponds.
At the southeastern end of the pond another small berm was built to divert stormwater away from the deep-water ponds, increasing treatment time. At the end of this berm, a knoll was built and planted with trees to provide nesting or roosting sites for birds. The basin was planted with species that resemble those found in the wetlands of North Central Florida. A boardwalk also will be constructed.
Expected SEEP Benefits
The SEEP project already has provided a great learning experience for Wetlands Club members through project design and organization, regulatory agency interaction and team work. Other benefits of the project include:
- Species diversity. The variety of plantings and topographic diversity on the sight provides new genetic material as well as suitable establishment sites for long-term increases in vegetative species diversity within the basin.
- Wildlife habitat. Vegetative diversity as well as diversity of aquatic habitat provides a multitude of new biotic niches not previously available in the basin. The value of this habitat becomes increasingly important as other areas on campus and in the Gainesville community are encroached upon.
- Aesthetics. Retention basins are notoriously unattractive, often fenced in, littered with trash, and square. Although the retention basin at the NATL is pleasant compared to some, its appeal would be improved if it resembled a diverse wetland.
- Water Quality. Construction of the forebay, planting of species known to have high treatment potential, and diversion of stormwater to maximize treatment all improve the water treatment potential of the basin.
- Research. Since integration of wetlands and stormwater basins is still a relatively new concept, little is known about optimization and performance of these systems. Implementing SEEP provides a unique opportunity to test the principles of this integration, pushing the University of Florida to the forefront of this technology. The location of this site on campus as well as the location of the site within NATL allows for easy access and control over activities within the site. Faculty, staff and state agencies interested in this topic will be able to use this as a long-term study site.
- Education. Educational opportunities for both students and the public enormous for this site. The University has one of only three wetland centers in the country with some of the founding faculty in principles of Ecological Engineering. Many courses throughout the campus use the area for various components of their curriculum. Public education opportunities abound with the construction of the new Florida Museum of Natural History within a stones throw of the basin.
